Foam Bladder Tank
Description
Product Details:
| Minimum Order Quantity | 3 STARTING PRICE |
| Country of Origin | Made in India |
| Capacity | 200 TO 10000 LITRES |
| Color | FIRE RED |
| Design | 16KG/CM2 |
| Pressure | 12KG/CM2 |
| Surface Finishing | PAINTING |
| Size | AS PER DRAWING |
| Brand | BRILLIANT |
| Usage/Application | FIRE FIGHTING EQUIPMENT |
Technical specification
- Mounting type: vertical, horizontal
- Storage capacity: 200LTR TO 20000LTR
- Following Rate: 16~160L/S
- Working pressure: (Mpa) 0.6~12Mpa (6Bar to 12Bar (175PSI) )
- Bladder: Buna -N with Nylon Reinforcement
- Main parts: tank, bladder, external pipe, pressure proportional, vent and drain valve, foam concentrate control valve, foam concentrate, level indicator, pressure gauge, safety valve.
- Suitable for: Foam 3% and 6%
- Fishing: Red Painted

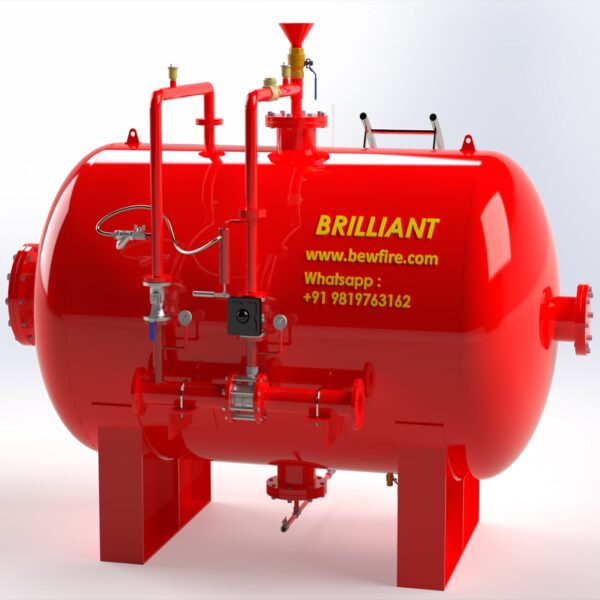

- Horizontal Bladder: Tank-1000 Liters-80 NB Foam
Proportioner
Foam Vessel made of C.S to SA-516 GR.70 designed and fabricated to ASME SEC.VII DIV.1 for Working Pressure of 12 Kg/cm2 and Hydro-Tested to Pressure of 18 Kg/cm2. Internally coated with two coats of Coal Tar Epoxy suitable for seawater application and Externally Painted with Corrosion Resistant Paint RAL 3000. Foam Bladder made of Nylon Reinforced Nitrite Rubber. Foam Piping of SS 304 and Water Piping made of CS, with 2 Nos. of 80 NB Foam Proportioner along with 2 Nos. of 40 NB foam control Valve – SS 304.
