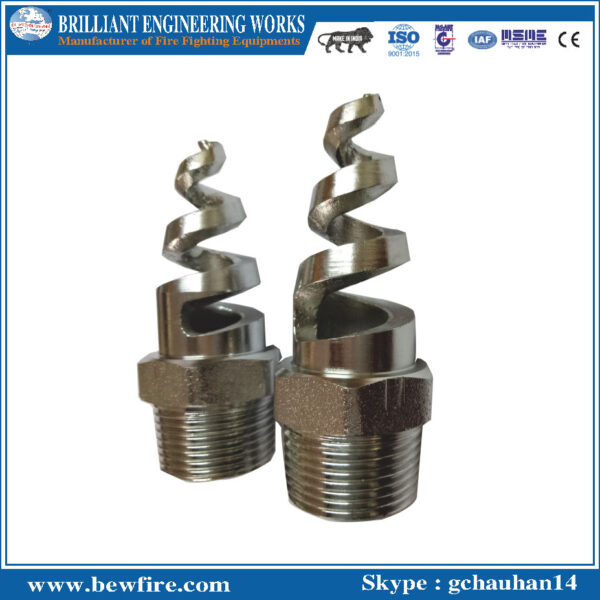

SS Spiral Nozzle
Description
Backed by the rich industry experience, we have been able to provide the customers with a robustly constructed range of SS Spiral Nozzle. Manufactured in strict accordance with the global quality standards, the range is widely appreciated for excellent performance, efficiency, robustness, and durability.
Specifications:
| FLOW RATES AND DIMENSIONS | OF SPIRAL SPRAY NOZZLES | |||||||||||
| MALE | LITRES PER MINUTE | KG | APPROXIMATE | WT. | ||||||||
| PIPE | k | 0.5 | 0.7 | 1 | 2 | 3 | 5 | 10 | 20 | DIMENSION (MM) | G | |
| size | factor | KG | KG | KG | KG | KG | KG | KG | KG | HIEGHT | WIDTH | METAL |
| 1/2″ | 75.00 | 53.00 | 62.90 | 75.20 | 106.00 | 130.00 | 168.00 | 238.00 | 336.00 | 64.00 | 22.22 | 86.00 |
| 1″ | 153.00 | 108.00 | 128.00 | 153.00 | 216.00 | 264.00 | 341.00 | 483.00 | 683.00 | 92.00 | 35.00 | 245.00 |
| 1 1/2″ | 294.00 | 208.00 | 246.00 | 294.00 | 416.00 | 509.00 | 657.00 | 930.00 | 1320.00 | 112.00 | ||
